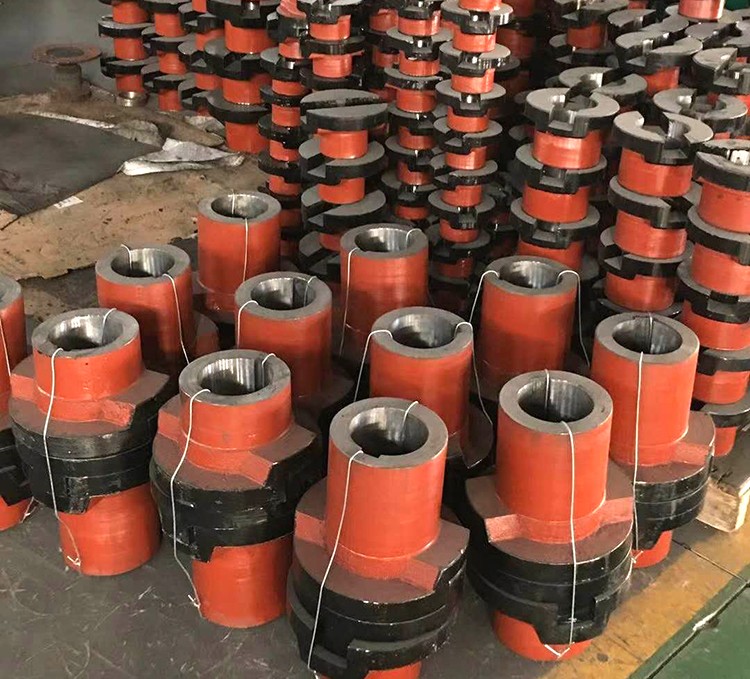

China coupling

The selection of China couplings is a comprehensive consideration process involving multiple factors. The following is a coupling selection guide compiled according to your needs:

1. Clarify the requirements for working conditions

Before selecting, it is necessary to first clarify the working conditions of the China coupling, including:
1. Speed: Understand the maximum speed and normal operating speed of the equipment to ensure that the coupling can withstand the corresponding speed range.
2. Torque: Calculate the magnitude of the transmitted torque to ensure that the coupling has sufficient load-bearing capacity.
3. Axial displacement: Considering the possible axial displacement of the equipment during operation, choose a coupling with corresponding displacement compensation capability.
4. Angular displacement: Evaluate the angular deviation that may occur during the operation of the equipment and select equipment that can adapt to this deviation.

5. Environmental temperature: Consider the working environment temperature of the equipment and choose a coupling that can work stably at that temperature.

2. Select coupling type

Select the appropriate type of China coupling according to the operating conditions. Common types of couplings include:
1. Rigid equipment: suitable for situations with high torque, high speed, no relative displacement or small relative displacement.
2. Elastic equipment: capable of compensating for large axial and angular displacements, suitable for situations with vibration or impact loads.
3. Removable equipment: suitable for situations where there is significant axial displacement between two axes.

4. Universal equipment: suitable for situations where there is significant angular displacement between two axes.

3. Calculation and verification

After determining the type of coupling, specific calculations and verifications are required, including:
1. Torque calculation: Calculate the required torque to be transmitted based on the power and speed of the equipment.
2. Strength verification: Ensure that the strength of the China coupling can meet the requirements of torque and speed, and avoid breakage or damage during use.

3. Displacement compensation verification: Verify whether the displacement compensation of the selected equipment can meet the actual displacement requirements of the equipment.

4. Installation size matching

The installation dimensions of the China coupling should match the shaft diameter, shaft length, and other dimensions of the equipment. When selecting, it is necessary to measure and confirm the dimensions of the equipment such as shaft diameter, shaft length, and shaft end distance to ensure that the coupling can be installed correctly.

5. Other precautions

1. Lubrication and maintenance: Understand the lubrication requirements and maintenance cycle of the equipment to ensure timely lubrication and maintenance during use.
2. Service life: Consider the service life and replacement cycle of the China  coupling, and choose products with high cost-effectiveness.
3. Supplier reputation: Choose suppliers with good reputation and after-sales service to ensure the quality of products and the reliability of after-sales service.
In summary, the selection of China couplings requires comprehensive consideration of working conditions, coupling types, calculations and verifications, installation size matching, and other considerations. Only through comprehensive analysis and comparison can the most suitable type of coupling be selected to ensure stable operation and efficient torque transmission of the equipment.
